The vision sensor that removes the setup pain

The FHV7-AI Detection Camera is built to collapse most of that work into a single pre-assembled unit and a guided setup. For straightforward judgement inspections, it's designed to get you from box to running line without specialist vision expertise, and without a parts list.

All-in-one means exactly that

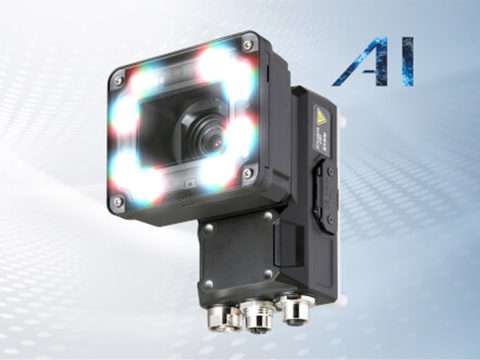

The FHV7-AI integrates the imaging sensor, white LED illumination, autofocus lens and image processing into one IP67-rated housing. There's no separate controller, no external light, no lens to source and mount. For an integrator, that removes a whole layer of specification and BOM management, along with the alignment headaches that come with separate optics and lighting.

The optical side covers most general-purpose applications out of the box. The 1.6 MP colour sensor (1440 x 1080, 1/2.9" CMOS, global shutter) runs at up to 224 fps (4.5 ms), and five focal-length options of 6, 9, 12, 16 and 25 mm give working distances from 59 mm out to 2,000 mm depending on the model. The minimum inspectable feature is roughly 180 x 180 pixels, which translates to a few millimetres at close field-of-view and scales with distance.

The autofocus lens is the part integrators tend to appreciate most. Changeover between products of different sizes is handled by switching condition settings rather than physically refocusing or re-rigging the camera, which is useful on high-mix lines where mechanical changeover time is the bottleneck. The IP67 rating (dropping to IP40 only with a connector cap removed) means it tolerates wash-down environments without a protective enclosure, so it's viable on food, beverage and packaging lines where that's a daily requirement.

AI-assisted setup takes over the time-consuming tuning work

The headline feature is the learning approach. With a conventional vision sensor, teaching it to reliably separate OK from NG means feeding it carefully chosen images and iterating on threshold values, a process that can take a day or more and rewards experience in knowing which images matter.

The FHV7-AI flips that. You provide a handful of images sorted into OK and NG, and the system selects the most useful samples itself and sets the threshold based on the distribution of learning results. OMRON's claim is setup in minutes rather than days, with reduced over-detection. In practice, the value for an integrator is that the part of the job that used to depend on tacit skill, namely picking training data and dialling in thresholds, is largely handled by the camera.

This is a judgement tool, organised around three pre-defined inspection types.

Item Presence, confirming all required components or features are there, such as a date code on a cap or a part seated in a moulding.

Product Type, verifying the correct variant is being used before assembly or packing continues.

Defect Detection, flagging scratches, dents or damage, including front/back and orientation checks.

If your application is dimensional measurement, OCR, code reading or fine surface metrology, that's the territory of OMRON's FH series rather than this camera. The FHV7-AI is deliberately aimed at the large middle ground of OK/NG inspections that are simple in principle but have historically been too fiddly or too expensive to justify automating.

Straightforward to connect, easy to integrate

On connectivity it's well-equipped for a unit this size: 1000BASE-T Ethernet, EtherNet/IP (target) and PROFINET (slave, conformance class A), plus parallel I/O over the I/O cable. That parallel interface gives one high-speed input, three general inputs, one high-speed output and four general outputs, NPN/PNP common. For applications needing more parallel I/O, the FHV-SDU10 data unit expands it. Learned image data lives on a microSD card (SDHC), which makes duplicating a proven configuration across multiple stations straightforward. Note there's no EtherCAT or serial interface on this model.

Power is a standard 24 VDC supply (21.6 to 26.4 V), drawing 4.2 A or less, and the unit weighs around 990 g in an aluminium die-cast body. Configuration is done through the free PC software (downloadable after registration) or a touch-screen PC on the line, both running the same guided Remote Operation Tool, available in eleven languages.

Where it earns its place

The argument for the FHV7-AI isn't that it's the most capable vision system OMRON makes, because it isn't. It's that it removes the two things that most often stop a sensible inspection from being automated: the engineering effort of building and tuning the system, and the cost of all the surrounding hardware. For an integrator weighing up whether a given OK/NG check is worth automating, that shifts a lot of borderline cases firmly into "yes".
