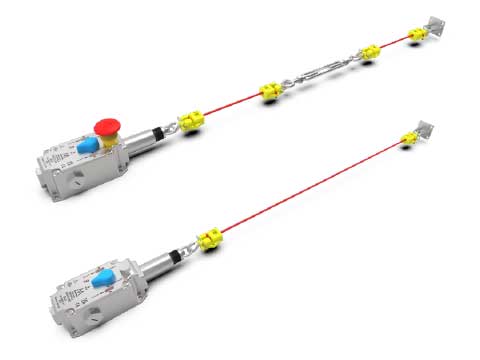

SafeLine 4 Grabwire from Mechan Controls

Mechan Controls is now launching a new range of Grabwire safety switches to fulfil the requirements of any machines where physical guarding is not possible. Made to the highest quality standard, the SL4 Grabwire is the future of conveyor guarding.

Made from 316 stainless steel and IP69k rated, the SL4 can withstand the harshest of environments and cleaning procedures. With a cable span of up to 75 metres, the SL4 can offer protection over a vast working area, keeping all users safe.

With dual tension indication, this makes the SL4 visible from most angles whilst tensioning. A blue reset switch and an optional mushroom E|Stop make the SL4  suitable for most applications.

The SL4 will come with either 2 normally closed and 2 normally open contacts, or 3 normally closed and 1 normally open. This comes with a positive mode mechanism that ensures the contacts are immediately latched open on actuation and can only be reset by turning the blue reset switch.

Mechan Controls will provide its very own tensioning kit, which will include:

• Up to 75 Meters of rope
• Stainless steel turnbuckle kit
• Cable clamps for ease of installation
• Anchor spring
• Eyebolts
• Anchor plate

The SL4 conforms to all relative safety standards including ISO13850 and IEC60947-5-5.

In the development of its products, Mechan Controls builds on continuous innovation and research over the past 51 years, with over 100 years of experience within the machine guarding safety industry.
