Custom retaining rings and wave springs for your application

Rotor Clip's engineers get involved early to understand what matters most for your design, whether it's saving space, handling heavier loads, or meeting tricky installation requirements. You can expect the same level of service and quality for custom parts as you do for standard ones at every step of the process with Rotor Clip.

A real customer challenge

A Rotor Clip customer needed a beveled retaining ring to reduce endplay and vibration in its application. The shaft diameter required a design adjustment beyond standard offerings and installing a standard retaining ring would have caused deformation and failure. By working together early in the process, Rotor Clip's engineers created a custom ring that maintained its shape during installation and ensured reliable and long-term performance of the application.

Designed specifically for e-mobility applications

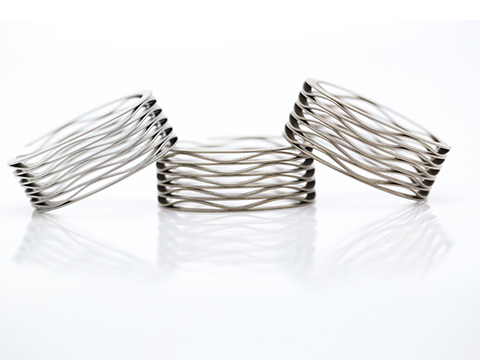

A customer was facing performance issues in its e-mobility application due to high torsional loads and tight tolerance requirements. To solve the problem, Rotor Clip engineers developed the patented InterShim wave spring.

Designed with alternating active and inactive turns, a specific wave count and specialty alloy, the InterShim meets the demands of EV and e-mobility systems while improving assembly and long-term reliability. It's just one example of how Rotor Clip continues to innovate and deliver custom solutions across industries.

Customising retaining rings and wave springs

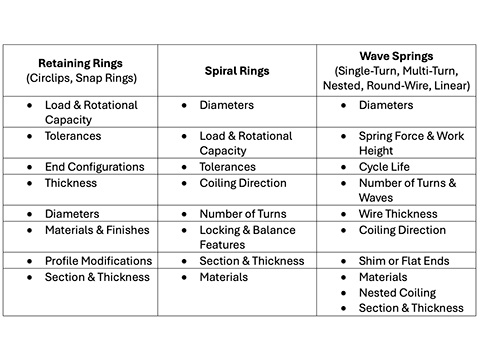

With decades of experience, Rotor Clip has designed tens of thousands of custom parts and produced billions of rings and springs to solve complex engineering challenges. The table below illustrates how Rotor Clip can modify your part to fit your needs.

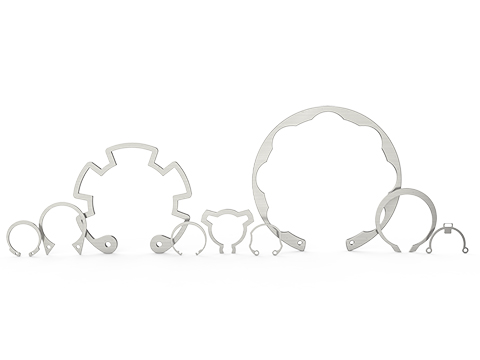

Retaining rings (circlips, snap rings)

Retaining rings must fit unique groove dimensions, shaft or bore sizes, and load conditions. Our engineers adjust thickness, materials, finishes, and end configurations to optimise fit and function. These modifications can be made quickly and effectively, avoiding the need for special tooling.

Spiral rings

Spiral rings are formed from a continuous coil, allowing easy adjustments to diameter, thickness, material, and finish without the need for special tooling. This flexibility makes customising for unique groove sizes, shaft or bore diameters, and load requirements straightforward. Rotor Clip can also incorporate locking and balance features to support applications with high rotational demands. This approach reduces material waste, helping to lower costs while ensuring a precise fit and dependable performance.

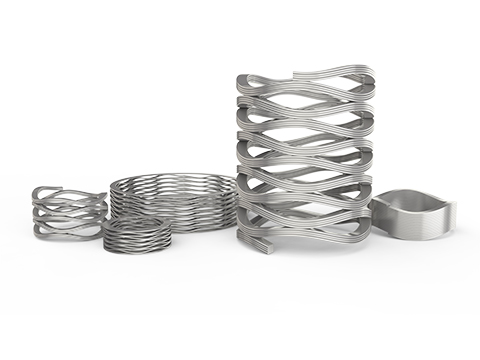

Wave springs

Looking for a spring solution that saves space while meeting precise load and cycle life requirements? Wave springs offer extensive customisation thanks to their coiled design. Engineers can adjust spring force and work heights by specifying the number of waves, turns, and materials to fit your specific needs. This flexibility enables quick prototyping and scalable production without the need for special tooling.

Rotor Clip does more than manufacture parts. It's a partnership. From one-off prototypes to high-volume production, Rotor Clip delivers the speed, flexibility, and expertise your project deserves. Rotor Clip has a team of design, metallurgical and quality engineers ready to support your needs with hundreds of combined years of experience supporting nearly every industry across the globe.
