Posted to News on 2nd Nov 2021, 00:00

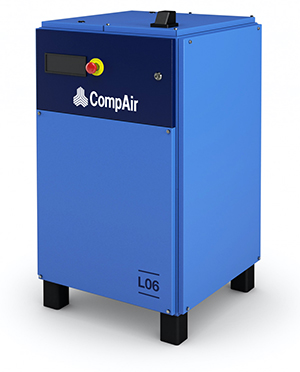

CompAir launches latest L-Series models from 2.2kW to 7.5kW
CompAir has added new models to its L-Series range of oil-lubricated screw compressors. Covering 2.2kW to 7.5kW models, the new fixed speed units are said to be highly versatile. From a stand-alone compressor to a complete air station with a high-performance dryer and intelligent control system for low-pressure losses, the systems can help meet a range of individual customer requirements.
CompAir says the user-friendly and compact design of the L-Series range means they are easy to use and ready for plug-and-play operation. As a result, these solutions are said to be suited to smaller applications across the general engineering, automotive, and woodworking industrial sectors, which specifically require high-performing compressors to meet fluctuating air needs and ensure energy efficiency, ease of maintenance, and low noise operations. The compressor itself requires a floor space of only 60 x 65 cm, with the receiver-mounted models described as exceptionally space-saving.
With noise levels as low as 63 dB(A), these latest models can be installed almost anywhere without major disturbances to the working environment. There is no need for a separate compressor room or expensive pipework, meaning installation costs are reduced. The simple design of the units also minimises the number of moving parts, improving reliability and scaling back maintenance costs. Compressor maintenance is made easy by the removable top and side doors, providing users with quick and easy access to all service points.
The latest L-Series compressors feature a new C-Pro1.0+ controller as standard, too. Information about pressure, oil temperature and compressor status to the operator together in one display. The controller offers a host of other features too, including a communication port RS485 supporting Mobus. The controller can be used also as a sequencer between two machines with C-Pro 1.0+, continuously monitoring all the critical parameters of the compressor.
Dora Artemiadi, product manager at CompAir, said: “These new oil-lubricated screw compressor solutions can be relied on to provide consistent, cost-effective, and high-quality compressed air and are capable of delivering pressure ranges up to 10 bar, and volume flow between 0.18 to 0.89m3/min.
“The new models are offered with a range of options to suit a user’s unique requirements. For example, the Star Delta starter is included as standard from 4kW up to 7.5kW, while 5.5kW and 7.5 kW variants include an aftercooler to optimise air quality and minimise the size of downstream needed.”
