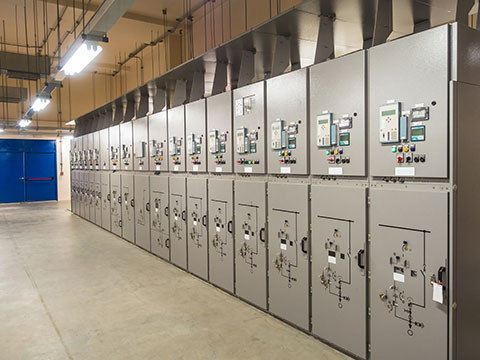

Arc flash: a hidden danger in switchgear panels

Arc flash is a serious threat that must be addressed to ensure the safety of workers and the integrity of electrical systems. By understanding the causes, dangers, and prevention strategies, organisations can take proactive steps to minimise the risk of arc flash incidents and protect their employees.

Arc flashes typically occur when a fault current flows through a high-voltage circuit. This can happen due to various factors. It can happen, for example, due to equipment failure: components such as switches, fuses or contacts may malfunction or wear out. Then there is human error, where incorrect operation or maintenance procedures can lead to faults. In addition, environmental factors like moisture, contamination, or extreme temperatures can contribute to arc flash incidents.

Arc flash is a burst of energy with temperatures up to 19,400degC. For comparison the temperature of the sun is about 5,600degC, meaning this temperature is over three times as much and is achieved within milliseconds. These extreme temperatures can ignite clothing, vaporise surrounding materials, and even melt metal.

Arc flash incidents can have devastating consequences, including:

Severe burns: The intense heat generated by an arc flash can cause deep burns, often requiring extensive medical treatment.

Blast injuries: The sudden release of energy can create a powerful blast wave, causing injuries to the body and potentially damaging nearby equipment.

Electrocution: If a person is directly exposed to the arc, they may experience electrocution, leading to serious injury or death.

Property damage: Arc flashes can cause significant damage to electrical equipment and surrounding structures.

To mitigate the risk of arc flash incidents, it's essential to implement effective safety measures:

Regular inspections: Conduct routine inspections of switchgear panels to identify and address potential hazards.

Proper maintenance: Ensure that equipment is maintained according to manufacturer guidelines to prevent failures.

Arc flash hazard analysis: Perform a detailed arc flash hazard analysis to determine the potential severity of incidents and identify appropriate protective measures.

Personal protective equipment (PPE): Provide employees with appropriate PPE, such as arc-resistant clothing, face shields, and hearing protection.

Lockout/tagout procedures: Implement strict lockout/tagout procedures to prevent accidental energisation of equipment during maintenance or repairs.

Training: Educate employees on arc flash hazards, prevention measures, and emergency procedures.

At Rittal, safety is engineered into every solution we design. Our enclosures, busbar systems, and modular switchgear solutions are built to help reduce the risk of arc flash through robust construction, tested protection classes and intelligent design that supports safe installation and maintenance. Combined with our expert guidance and support, Rittal helps you create a safer, more reliable electrical environment - protecting both people and equipment where it matters most.
