Absolute position and speed data for automation and drive technology

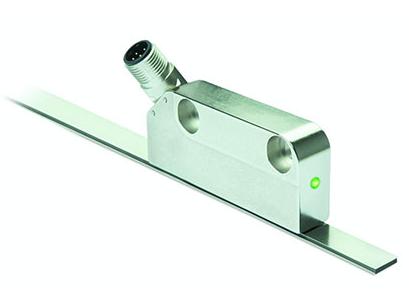

The requirements for sensors used for position detection in automation and drive technology increase with the complexity and performance of the associated machines and systems. The high-resolution, non-contact absolute encoder MSA213K from Siko offers a solution for this.

The MSA213K provides absolute position at any time (without referencing or buffer battery). With its high signal quality, the encoder is said to be ideal for use in handling and assembly automation, machining systems, pick-and-place applications, PCB machining and always provides precise values for position and speed measurement in linear direct drives.

The magnetic absolute linear encoder offers an absolute resolution of 1 µm, ensuring precise position detection at all times. Absolute measurement is essential, especially in safety-relevant applications when a change in position has to be reliably detected even if power is off.

The repeat accuracy achieved of ± 1 μm enables reliable use in multi-axis applications or positioning systems where exact control and position recognition is required. It achieves this performance level over a length of up to 16 meters.

To make the MSA213K as easy to integrate as possible, it is available with numerous absolute interfaces, including SSI and BiSS C and IO-Link. In addition, an incremental interface is available in parallel as a digital line driver or analogue 1 Vss signal output. With this combination, absolute travel information is available at all times and precise commutation is possible even in dynamic operation.

The compact installation dimensions and a large reading distance of up to 0.8 mm, together with the 270° swivelling connector, enable flexible integration into a wide range of applications. For easy installation and operation, the absolute encoder has a clearly visible function and status indicator LED that provides feedback on function and operating status.
